Ronstan Series 45 BB Stand-up Core Block - Swivelling

Previous Product | Next Product

Ronstan Series 45 BB Stand-up Core Block - Swivelling

฿4,520
In stock, dispatched in 24 hours
To pre-order this variant call +66 (0) 76 239 113 or contact us:

Name:*

Email:*
Phone number:
Message: *
* Required Fields
Looking for wholesale pricing & volume discounts? Become a dealer! »»
Product Description

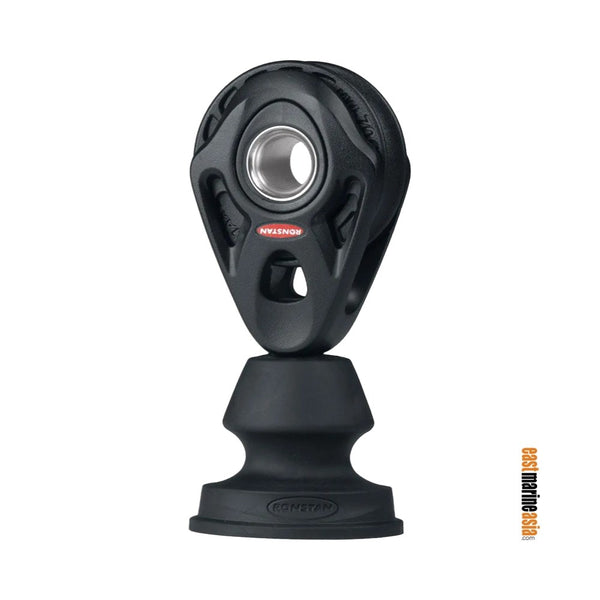

Ronstan Series 45 BB Stand-up Core Block - Swivelling - RF44140

  • High dynamic and static load capacity
  • Efficient 2-stage bearing system
  • Ball bearings to counteract side thrust loads
  • Class leading performance and sleek, contemporary styling
  • Durable aluminium alloy cheek plates
  • Central hub can be used as a becket take-off or tie-up point, max 11.5 mm line
  • Features a strong cast padeye base with a swivel head post to allow full rotation and articulation


Materials

  • Sheave: UV stabilised acetal
  • Cheek body: aluminium Alloy
  • Ball Bearings: High compression strength carbon black acetal
  • Shackle, head post & hub: Grade 316 stainless steel


Specifications

  • Sheave Dia: 45 mm
  • Max. Rope Dia: 12 mm
  • Max. Cable Dia: -
  • Pin Dia: -
  • MWL: 700 kg
  • BL: 1400 kg
  • Weight: 151 g
