Forespar Marelon T-150 Compact Water Strainer - NPS


To pre-order this product call us +66 (0) 76 239 113 or contact below:


Phone number:
Message: *
* Required Fields
Looking for wholesale pricing & volume discounts? Become a dealer! »»
Product Description

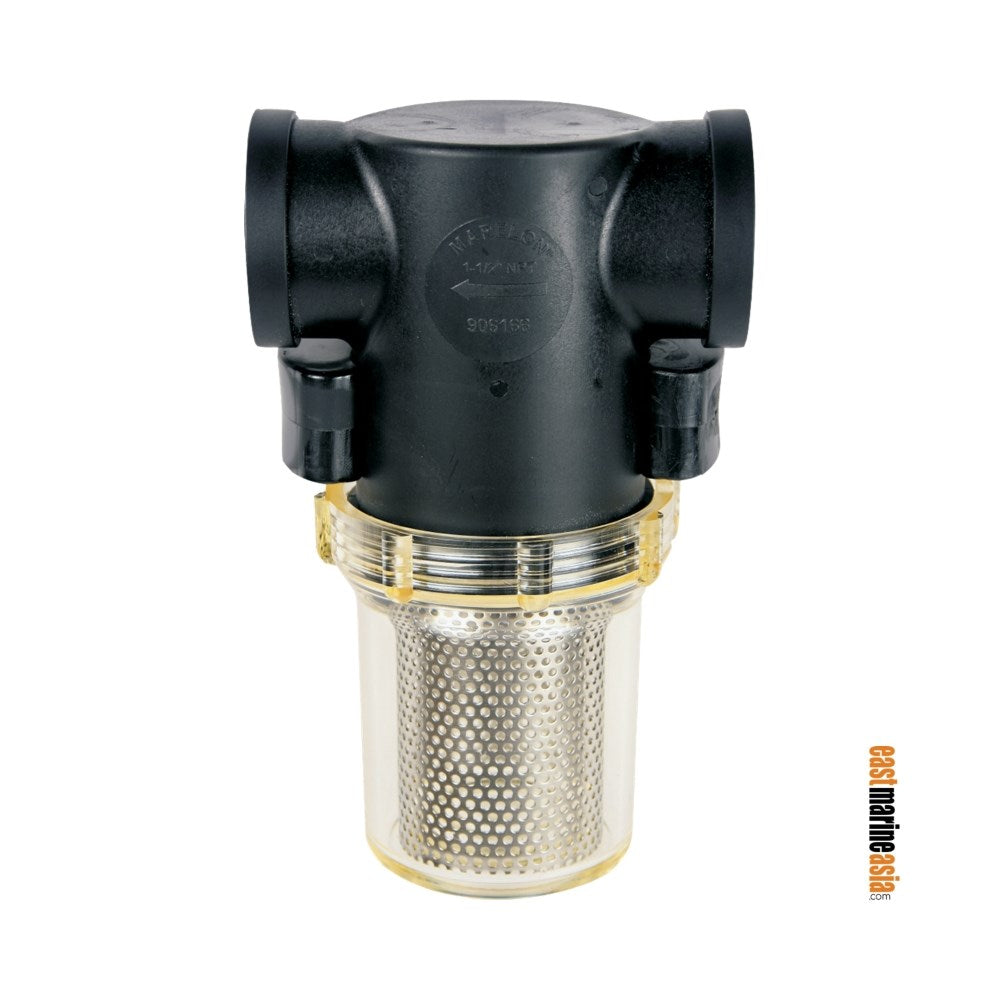

Forespar Marelon T-150 compact raw water strainer features great throughput and the legendary Marelon resiliency in a compact package.  Suitable for space saving or just need a smaller strainer without compromising quality.

The T-150 has two 1-1/2” female NPSM (parallel threads) ports to which you can attach a straight or 90° hose barb tailpipe as needed.  Marelon reducers are available to go from 1-1/2” hose to ¾” hose if needed.  See Marelon adapters option. Maximum 10 bar @ 20° C (150 psi @ 70° F) and 7 bar @ 50° C (100 psi @125° F).  Not designed for pressure spikes exceeding maximum psi. Up to 0.8 bar (12 psi) vacuum.

The included mounting bracket requires two (2) 1/4” fasteners (not included) to firmly mount to a bulk head or stringer and allows the “T” head to be rotated as needed.  A flat washer under the fastener heads is recommended.

A seacock is required on the intake thru-hull, and it is advisable to have an inline valve on the back side (outlet) as well so the unit can be completely isolated for basket removal and cleaning without having backflow spillage into your bilge. The “T” head should be above the waterline.

SKU: #
