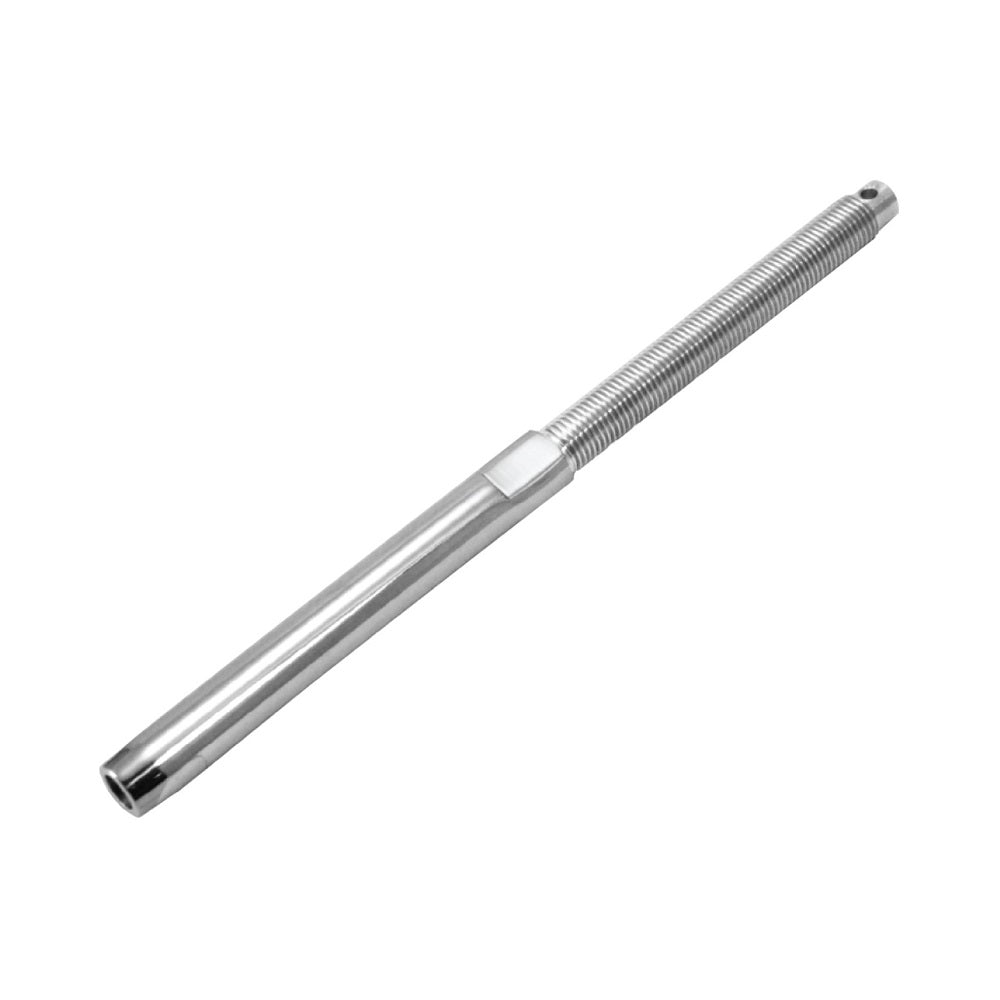

Hamma Regatta Swage Stud (Left Hand)

฿495

In stock, dispatched in 24 hours

To pre-order this variant call +66 (0) 76 239 113 or contact us:

Name:*

Email:*

Phone number:

Message: *

* Required Fields

Looking for wholesale pricing & volume discounts? Become a dealer! »»

Product Description

hamma™ Regatta Swage Stud has been designed to match the extreme high performance of the hamma™ X and hamma™ Pro cables.

Features
- Marine grade 316 stainless steel
- High corrosion resistance
- Aesthetically pleasing
- 30% higher breaking strength to meet and exceed hamma™ Pro Strand
- Have rolled threads which maximises the active stress area by redistribution of material which increases hardness by 30%
- Increased swage length which is 11 times the diameter of the wire

Cable Size	Thread	MBS (kgf)	MBS (kN)
4.0 mm	5/16"	2,400	23.5
5.0 mm	5/16"	2,400	23.5
5.0 mm	3/8"	3,600	35.3
6.0 mm	3/8"	3,600	35.3
6.0 mm	7/16"	5,000	49.1
6.0 mm	1/2"	6,800	66.7
7.0 mm	1/2"	6,800	66.7
8.0 mm	1/2"	6,800	66.7
8.0 mm	5/8"	10,900	106.9
9.0 mm	5/8"	10,900	106.9
10.0 mm	5/8"	10,900	106.9
12.0 mm	3/4"	15,900	156.9
14.0 mm	7/8"	21,500	212.9
16.0 mm	1"	28,300	277.6
5/32"	5/16"	1,550	15.2
3/16"	5/16"	2,400	23.5
3/16"	3/8"	2,400	23.5
7/32"	3/8"	3,600	35.3
1/4"	7/16"	5,000	49.1
1/4"	1/2"	6,800	66.7
9/32"	1/2"	6,800	66.7
5/16"	1/2"	6,800	66.7
5/16"	5/8"	10,800	66.7
3/8"	5/8"	10,800	66.7
7/16"	3/4"	15,900	156.9
1/2"	7/8"	21,500	212.9
