Use Option (1) to select Shaft Diameter size

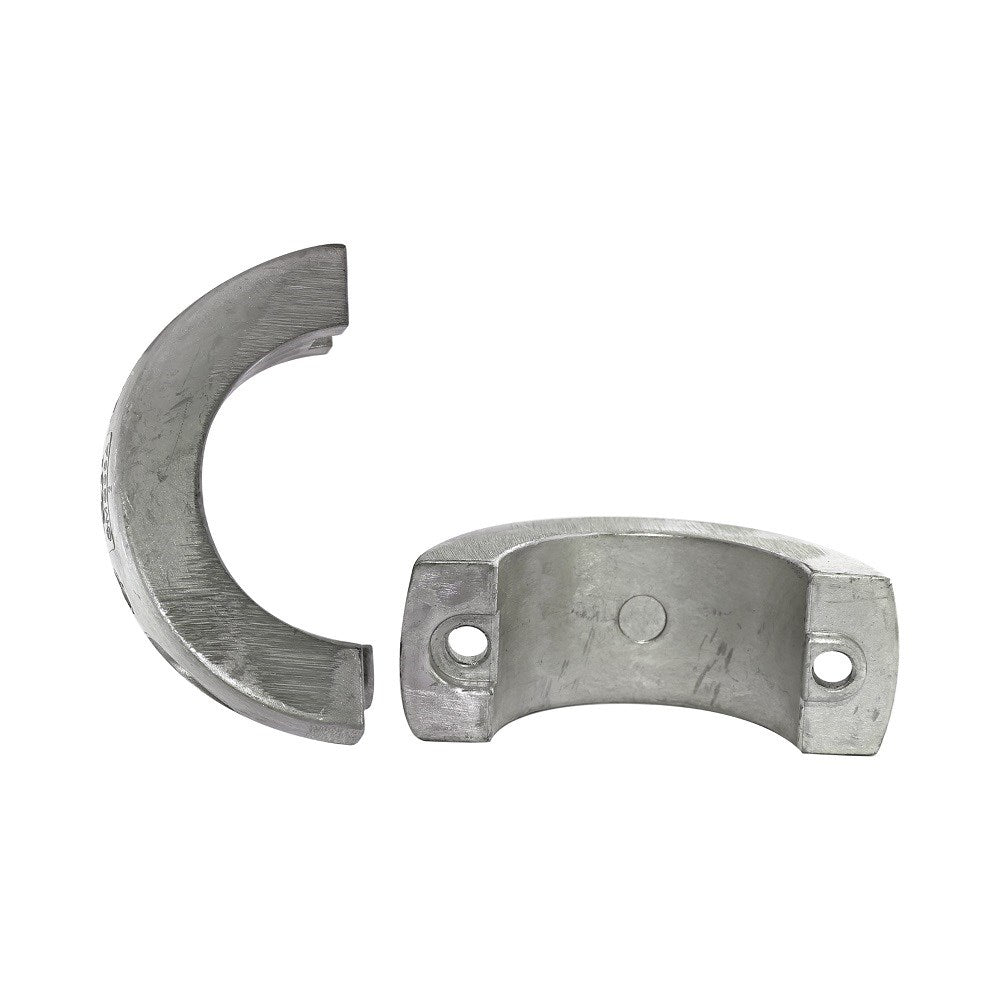

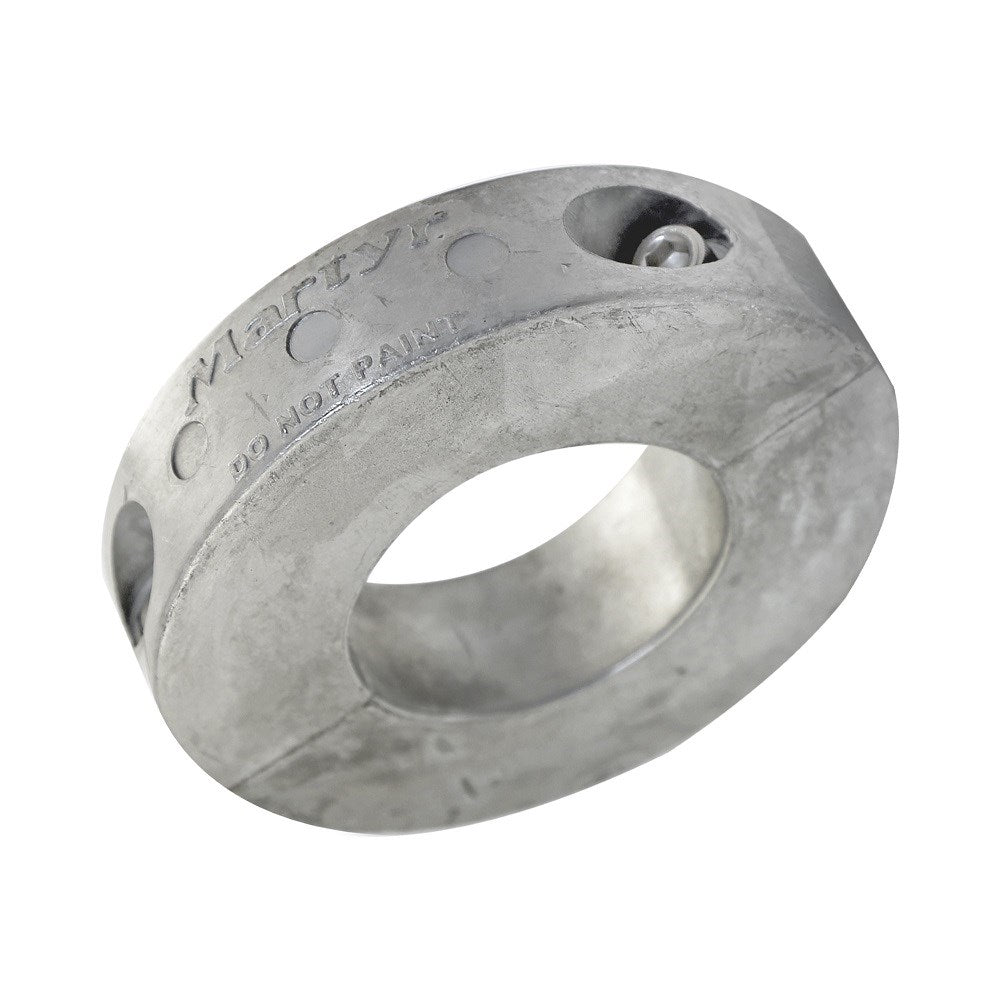

Martyr Limited Clearance Shaft Anodes features easy installation underwater, bolt retaining washers prevent the anode from falling off. Full shaft contact, 100% circular radius. Interlocking halves with extra alloy around fastener.
|

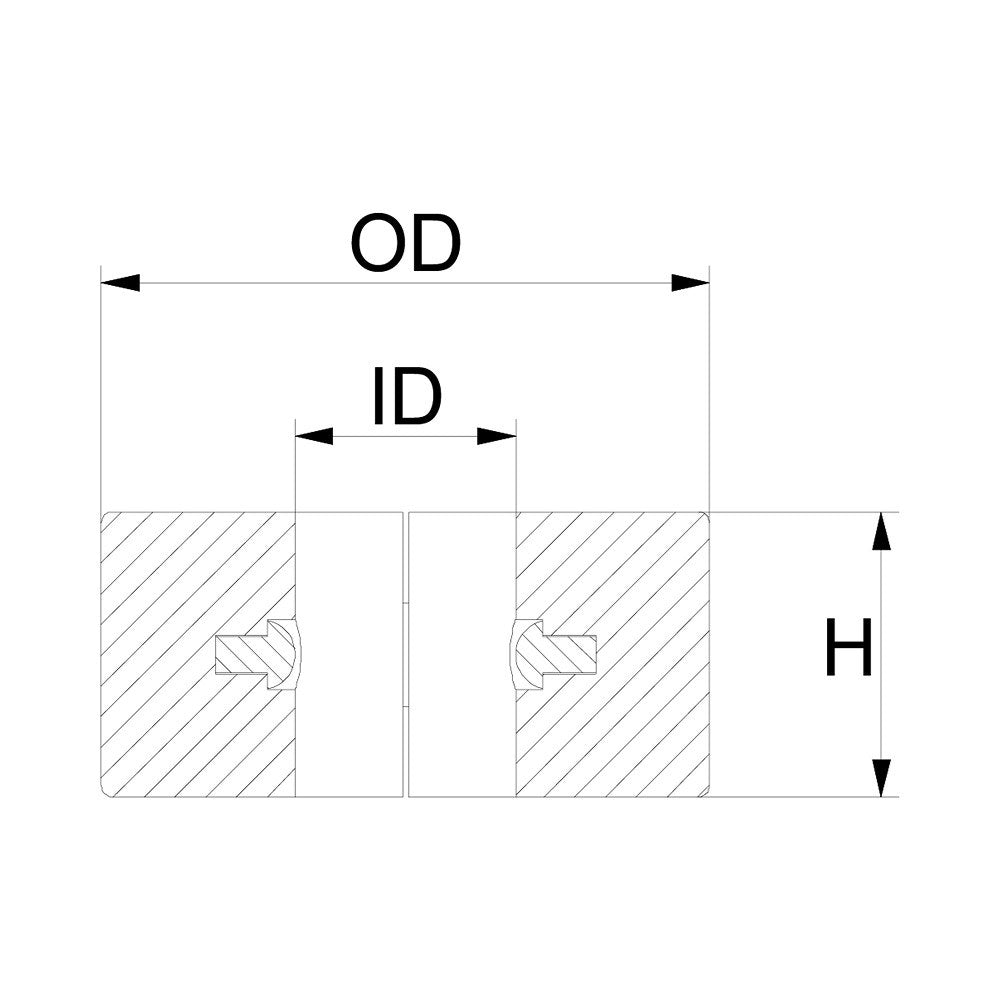

Product
Number
|
Weight
(kg)
|
H
(mm)
|
OD
(mm)
|
ID
(mm)
|
CMC20 |
3.16 |
25 |
54 |
20 |
CMC25 |
0.31 |
32 |
63 |
25 |
CMC30 |
0.49 |
32 |
63 |
30 |
CMC35 |
0.55 |
32 |
76 |
35 |
CMC40 |
0.69 |
32 |
76 |
40 |
CMC45 |
1.22 |
35 |
89 |
45 |
CMC50 |
1.22 |
35 |
89 |
50 |
CMC55Z |
1.42 |
29 |
114 |
55 |
CMC60 |
1.46 |
29 |
120 |
60 |
CMC65Z |
1.56 |
29 |
125 |
65 |
CMC70 |
1.66 |
29 |
130 |
70 |
CMC75 |
1.74 |
29 |
135 |
75 |
CMC80 |
1.81 |
29 |
140 |
80 |
CMC85Z |
2.78 |
32 |
153 |
85 |
CMC90 |
4.00 |
40 |
170 |
90 |
CMC95Z |
3.76 |
40 |
170 |
95 |
CMC100 |
4.30 |
40 |
180 |
100 |
CMC120 |
6.50 |
40 |
220 |
120 |
