Trident Marine LPG Control & Detection System

฿27,695 ฿36,200 23% off

To pre-order this product call us +66 (0) 76 239 113 or contact below:


Phone number:
Message: *
* Required Fields
Looking for wholesale pricing & volume discounts? Become a dealer! »»
Product Description

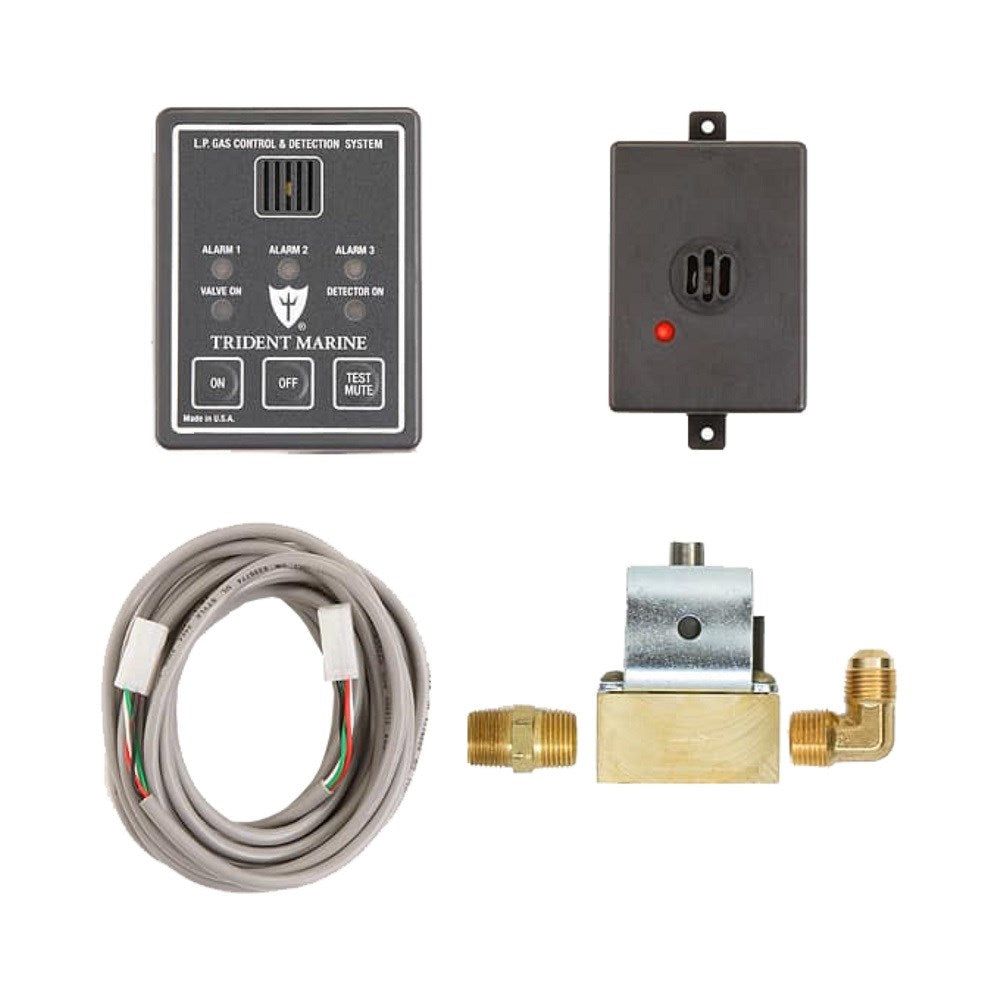

Trident LPG Control & Detection System turns Gas ON / OFF from inside the galley; continuously monitors space(s) for presence of LPG in up to 3 locations, with additional detectors; and automatically turns Gas OFF and activates audio and visual alarm if gas is detected at 10% Lower Explosion Limit (LEL).  The surface mount Marine UL Listed Gas Control Panel has: 3 alarm zone indicators, green function light, red alarm lights, 95 db alarm, mute / test button.  The Detector has red function light and a 3 m (10 ft) Quick Connect Cable.  The detector is ON and monitoring even when the Gas Control Panel is OFF, and its Alarm horn will sound as long as LP Gas is present at 10% Lower Explosion Limit (LEL) or until the mute / test button is touched.  If LP Gas is detected when the Gas Control Panel is ON, the Panel, the green function light and solenoid are automatically turned OFF.  A red indicator light illuminates to show which detector or where the alarm occurred.  The system draws 163 mA when OFF, 953 mA when ON / Standby mode & 255 mA in the alarm mode.

SKU: #
