Product Description

Please contact us (sales@eastmarineasia.com ) or use the form above for price quote.

*** Worldwide drop-ship directly from factory ***

Please include information like your intended voltage (or hydraulic type) and size of your chain.

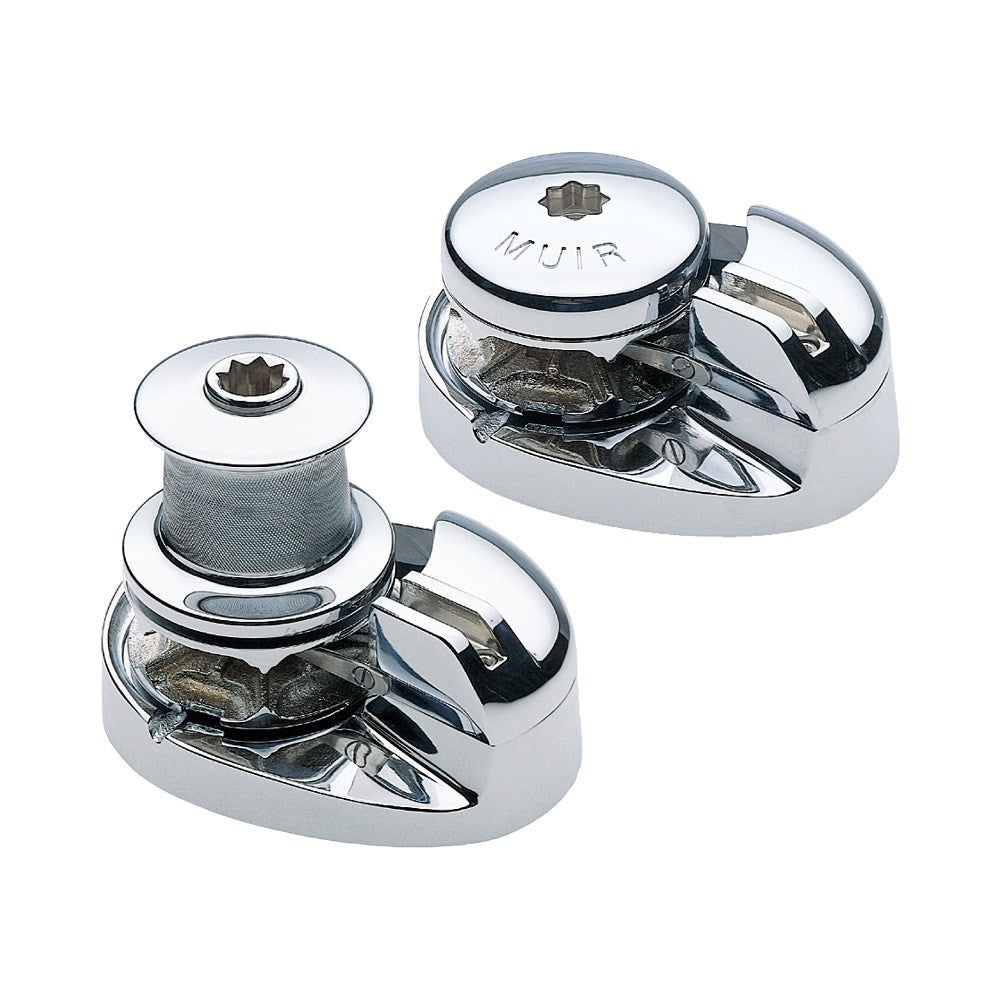

Muir VR600 / VRC600 Storm Stainless Steel Vertical Windlass

  • Rope chain combination gypsy for rope and chain combination or chain only
  • Rope Chain Management System (RCMS)
  • Quick release integrated swivel chain pipe cover
  • Gypsy with capstan (VRC) or gypsy with low profile clutch top arrangement (VR)
  • Heavy duty marine grade, dual direction motor in 12 Vdc or 24 Vdc
  • 316 Stainless steel
  • Independent gypsy and capstan operation (VRC model)
  • Capstan models feature heavy duty knurled finish for increased grip
  • Quick fit adaptor
  • Stainless steel shaft
  • Cone clutch/brake
  • Stainless steel mounting bolts
  • Shaft seal
  • Lubricating grease nipple
  • Clutch release handle
  • Installation/Operation booklet

Vessel Length

5 - 9 m (16 - 29 ft)

Power Supply

12 / 24 Vdc

Motor

600 W

Max Load

300 kg (660 lb)

Work Load

75 kg (165 lb)

Amps Work Load

40 / 80

Max Line Speed

25 m / min (80 ft / min)

Chain Size

6 - 7 mm (1/4 - 9/32”)

Rope Size

12 mm (1/2”)

Net Weight

VR 12 kg (26 lb)
VRC 12.5 kg (28 lb)
